Product Details:
|
Product Name: | Vinyl Terpolymer Resin | Application: | Shell Lacquer For Machinery, Industrial Maintenance Paint, Plastic Lacquer, Can Coating, Leather Coating, Interlamination Adhesive, Magnetic Tape Adhesive, Gravure Printing Ink For Recombination, High Grade PU Wood Paint, Metal Paint Etc. |
---|---|---|---|
Appearance: | Yellowish Powder | Reactive Functional Group (Hydroxyl): | 1.9-2.1% |
K Value: | 30-32 | Volatilization: | ≤1% |
Glass Transition Temp: | About 65ºC | Net Weight: | 25Kg/bag |
High Light: | VMCH Vinyl Resin,vinyl chloride copolymer |

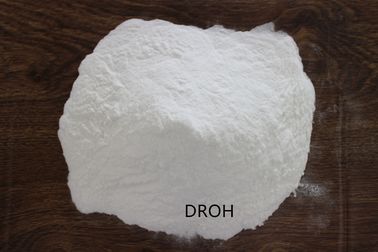

Vinyl Copolymer Resin DROH Used In Inks And Paints The Replacement Of DOW VROH
Specifications:
No. | Item | Index | Test Method & Criteria | |
1 | Appearance | White powder | By visual | |
2 | Whiteness | ≥80 | GB2913-82 | |
3 |
Composition (%,by Wt) |
Vinyl Acetate | 4.0±1.0 | ISO1159-1978 |
Hydroxyalkyl Acrylate | 15.0±1.0 | |||
4 |
Reactive Functional Group (Hydroxyl %) |
1.9-2.1 | ||
5 |
Hydroxyl Value (Mg KOH/g) |
66 | ISO2554-1974 | |
6 | K Value | 30-32 | GB/T3401-1999 | |
7 |
Viscosity (Ml/g) |
33-35 | GB/T3401-1999 | |
8 | Glass Transition Temp(ºC) | About 65 | GB11998-89 | |
9 | Average Molecular Weight | About 15000 | ||
10 |
Grain Size (through 60 mesh) |
100 | GB/T6003.1 | |
11 |
Stacking Density (g/ml) |
≥0.6 | GB20022-2005 | |
12 |
Volatilization (%) |
≤1 | GB/T2914-1999 | |
13 |
Impurity Particle No. (grains/100g) |
≤20 | GB9348-88 | |
14 |
Solubility 25%(MEK : Toluene=1:1)solution |
Colorless, Transparent, No insoluble matter | By visual | |
15 | Countertype | VROH | DOW |
Applications:
DROH resin is extensively used in the following fields currently:
Marine overprinting varnish, common metal overprinting varnish, corrosion resistant coating for vessel and marine, shell lacquer for machinery, industrial maintenance paint, plastic lacquer, can coating, leather coating, high grade PU wood paint, metal paint etc.
Interlamination adhesive, magnetic tape adhesive
Gravure printing ink for recombination
Property:
DROH resin is the excellent carrier of pigment used in the inks and coatings because the resin contains VC and VAC, meanwhile, it possesses excellent adhesion on the following items, such as PET, resin primers, paper, acrylic resin, PVC, ABS, PC, the surface of ink, pretreated PE and OPP etc.
DROH resin is often used with other film-forming materials to improve the properties of coating and strengthen adhesion, flexibility, toughness, hardness and chemical resistance.
Because of hydroxyl functional group in the structure of resin, DROH resin can implement cross linking reaction with thermosetting resins (e.g. Isocyanate), the formed film has the following excellences, such as bright, hard and tough, wear resistant, scratch resistant, water resistant and chemical resistant etc.
Solubility & Compatibility:
A. Ketone solvents are specially suited, such as ace-tone, MEK, nadone and isophorone. Compared with ketone solvents, ester solvents have lower solubility for DROH resin, such as methyl acetate, ethyl acetate and butyl acetate etc. Therefore, we need to heat the solution or add ketone solvents into the solution while DROH resin is dissolved in ester solvents.
B. Chlorohydrocarbons, Nitro compound and alicyclic solvents, such as dichloroethane and diethylene oxide, also can dissolve DROH resin, but these kinds of solvent are toxic, they are only used in special situation.
C. For DROH resin, lower molecular weight is helpful for increasing the solubility of resin and solid content of solution.
D. DROH type of terpolymer is miscible with other resins during the course of usage, such as other types of vinyl chloride vinyl acetate copolymer, PVC resins, perchloro-ethylene resin, ketone resins, chloroprene rubber, NBR, polyacrylate, epoxy resin, polyester and petroleum resin etc.
Packaging and Storage:
A. DROH resin is usually packaged into the craft paper-plastic composite bag lined with plastic film according to 25Kgs per bag.
B. DROH resin should be stored in dry place away from sunlight.
C. Any queries on technology or quality assurance can be inquired to our company.
D. Should DROH resin have been kept over the shelf time, it shouldn’t mean the resin is invalid, but the user has to test the relevant properties of DROH resin and its finished product before using it in bulk.
Competitive Advantage:
A. More appropriate price under the same quality as the one out of China.
B. Timely and effective service based on quality and technic.
C. Shorter lead time based on requirements from clients.
