DY-P403 Hemming Polyamide Hot Melt Adhesive Cementing Fixing Materials For Electronic Component

DY-P403 Hemming Polyamide Hot Melt Adhesive Cementing Fixing Materials For Electronic Component
DY-P403 Hemming Polyamide Hot Melt Adhesive Cementing Fixing Materials For Electronic Component DY-P403 Hemming Polyamide Hot Melt Adhesive Cementing Fixing Materials For Electronic Component

Large Image :  DY-P403 Hemming Polyamide Hot Melt Adhesive Cementing Fixing Materials For Electronic Component

Product Details:
Place of Origin: China
Brand Name: Direction Chemical
Certification: ISO9001
Model Number: DY-P403
Payment & Shipping Terms:
Minimum Order Quantity: 500Kgs
Price: USD2.60~3.60/Kg
Packaging Details: 25Kgs/bag
Delivery Time: 5-8 working days
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 1000T/month

DY-P403 Hemming Polyamide Hot Melt Adhesive Cementing Fixing Materials For Electronic Component

Description
Acid Value: ≤5mg KOH/g Amine Value: ≤3mg KOH/g
Viscosity: 4000-6000mpa.s/200ºC Softening Point: 160±5ºC
Color,(Fe-Co): ≤8 Tensile Strength: ≥13 MPa
Water Absorption: ≤ 0.4% Shear Strength: ≥10 MPa, AL/AL
Stretch Rate: ≥250 % Peeling Strength: ≥ 100N/25mm,PE/PE,60±2ºC
Operating Temperature: 190-200ºC
High Light:

Electronic Component Hemming Adhesive

,

Fixing Polyamide Hot Melt Adhesive

,

Cementing Polyamide Hot Melt Adhesive

Polyamide Hot-melt Adhesive/Hemming Adhesive (DY-P403)

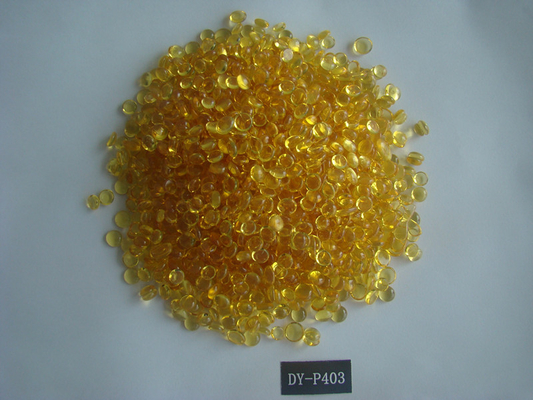

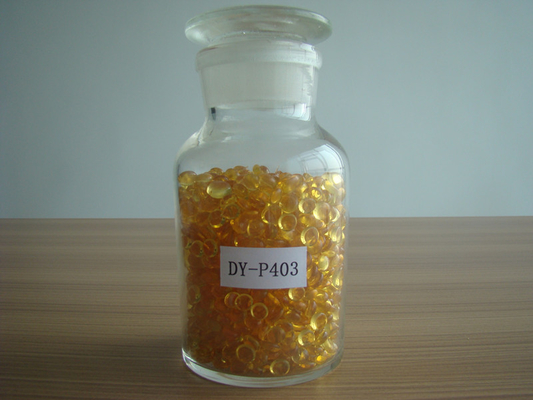

1.Appearance:

      Yellowish round grain with schistose shape



2.Property:

DY-P403 is a general type of polyamide hot-melt adhesive, which is made from dimer acid and polyamine through condensation reaction at high temperature.

It can dissolve in general organic solvents, the hot-melting viscosity of the resin is greatly related to the temperature that it gets.

The polyamide hot-melt adhesive possesses the following advantages, such as lower viscosity, good fluidity, good flexibility, high adhesive strength, good media corrosion resistance, good solubility and fluxing property at low temperature, higher heat stability etc.



3.Application

This type of resin is applied in heat-shrinkable sleeve for electric cable, sealing material for electrical connection, cementing or fixing materials for electronic component, bonding material for package, textile, leather, wood, plastic, metal and ceramics etc.



4.Technologic Index

Acid Value,(mg KOH/g ≤) 5
Amine Value,(mg KOH/g≤) 3
Viscosity,(mpa.s/200ºC) 4000-6000
Softening Point,(ºC) 160±5
Color,(Fe-Co ≤) 8
Tensile Strength, (≥ MPa) 13
Water absorption, (≤ %) 0.4
Shear Strength, (≥ MPa, AL/AL) 10
Stretch Rate, (≥ %) 250

Peeling strength,

(≥ N/25mm,PE/PE,60±2ºC)

100
Operating Temperature( ºC ) 190-200

5.Packaging & Storage

Double packing: paper-plastic composite bag lined with PE film.

Net weight: 25Kgs per bag.

Stored in cool, airy and dry place, the package has to be sealed before using up the resins.
