Hemming Adhesive Sealing Material Polyamide Hot Melt Adhesive DY-P402 For Electrical Connection

Hemming Adhesive Sealing Material Polyamide Hot Melt Adhesive DY-P402 For Electrical Connection
Hemming Adhesive Sealing Material Polyamide Hot Melt Adhesive DY-P402 For Electrical Connection Hemming Adhesive Sealing Material Polyamide Hot Melt Adhesive DY-P402 For Electrical Connection

Large Image :  Hemming Adhesive Sealing Material Polyamide Hot Melt Adhesive DY-P402 For Electrical Connection

Product Details:
Place of Origin: China
Brand Name: Direction Chemical
Certification: ISO9001
Model Number: DY-P402
Payment & Shipping Terms:
Minimum Order Quantity: 500Kgs
Price: USD2.60~3.60/Kg
Packaging Details: 25Kgs/bag
Delivery Time: 5-8 working days
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 1000T/month

Hemming Adhesive Sealing Material Polyamide Hot Melt Adhesive DY-P402 For Electrical Connection

Description
Acid Value: ≤5mg KOH/g Amine Value: ≤3mg KOH/g
Viscosity: 2500-4500mpa.s/200ºC Softening Point: 110±5ºC
Color,(Fe-Co): ≤8 Tensile Strength: ≥6 MPa
Water Absorption: ≤ 0.4% Shear Strength: ≥7 MPa, AL/AL
Stretch Rate: ≥400 % Peeling Strength: ≥ 100N/25mm,PE/PE,60±2ºC
Operating Temperature: 140-160ºC
High Light:

Hemming Adhesive Sealing Material

,

Electrical Connection Polyamide Hot Melt Adhesive

,

Printing Inks Hot Melt Polyamide Resin

Polyamide Hot-melt Adhesive/Hemming Adhesive (DY-P402)



1.Appearance:

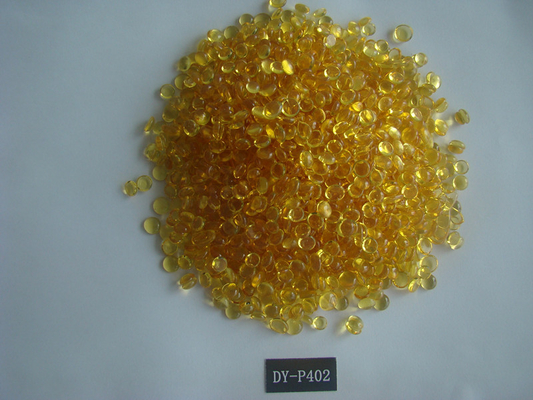

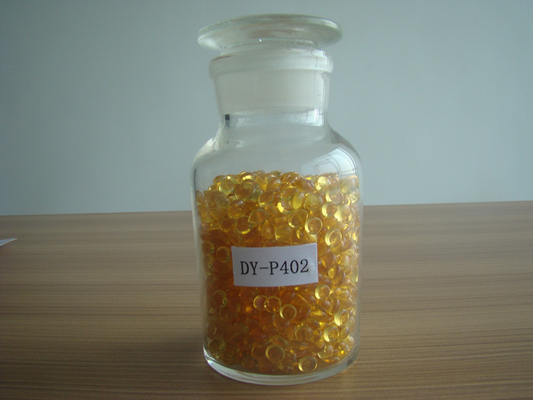

      Yellowish round grain with schistose shape



2.Property:

DY-P402 is a general type of polyamide hot-melt adhesive, which is made from dimer acid and polyamine through condensation reaction at high temperature.

It can dissolve in general organic solvents, the hot-melting viscosity of the resin is greatly related to the temperature that it gets.

The polyamide hot-melt adhesive possesses the following advantages, such as lower viscosity, good fluidity, good flexibility, high adhesive strength, good media corrosion resistance, good solubility and fluxing property at low temperature, higher heat stability etc.



3.Application

This type of resin is applied in heat-shrinkable sleeve for electric cable, sealing material for electrical connection, cementing or fixing materials for electronic component, bonding material for package, textile, leather, wood, plastic, metal and ceramics etc.



4.Technologic Index

Acid Value,(mg KOH/g ≤) 5
Amine Value,(mg KOH/g≤) 3
Viscosity,(mpa.s/200ºC) 2500-4500
Softening Point,(ºC) 110±5
Color,(Fe-Co ≤) 8
Tensile Strength, (≥ MPa) 6
Water absorption, (≤ %) 0.4
Shear Strength, (≥ MPa, AL/AL) 7
Stretch Rate, (≥ %) 400

Peeling strength,

(≥ N/25mm,PE/PE,60±2ºC)

100
Operating Temperature( ºC ) 140-160


5.Packaging & Storage

Double packing: PP textile bag lined with PE film or paper-plastic composite bag lined with PE film.

Net weight is 25Kgs per bag.

Store in cool, airy and dry place, the package has to be sealed before using up the resins.
