Electric Cable Polyamide Resin Hot Melt Adhesive Hemming Adhesive Heat Shrinkable Sleeve

Electric Cable Polyamide Resin Hot Melt Adhesive Hemming Adhesive Heat Shrinkable Sleeve
Electric Cable Polyamide Resin Hot Melt Adhesive Hemming Adhesive Heat Shrinkable Sleeve Electric Cable Polyamide Resin Hot Melt Adhesive Hemming Adhesive Heat Shrinkable Sleeve

Large Image :  Electric Cable Polyamide Resin Hot Melt Adhesive Hemming Adhesive Heat Shrinkable Sleeve

Product Details:
Place of Origin: China
Brand Name: Direction Chemical
Certification: ISO9001
Model Number: DY-P401
Payment & Shipping Terms:
Minimum Order Quantity: 500Kgs
Price: USD2.60~3.60/Kg
Packaging Details: 25Kgs/bag
Delivery Time: 5-8 working days
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 1000T/month

Electric Cable Polyamide Resin Hot Melt Adhesive Hemming Adhesive Heat Shrinkable Sleeve

Description
Acid Value: ≤5mg KOH/g Amine Value: ≤3mg KOH/g
Viscosity: 1000-2500mpa.s/200ºC Softening Point: 110±5ºC
Color,(Fe-Co): ≤8 Tensile Strength: ≥5 MPa
Water Absorption: ≤ 0.4% Shear Strength: ≥6 MPa, AL/AL
Stretch Rate: ≥100 % Peeling Strength: ≥ 100N/25mm,PE/PE,60±2ºC
Operating Temperature: 140-160ºC
High Light:

Heat Shrinkable Sleeve Polyamide Resin

,

Polyamide Resin Hot Melt Adhesive

,

Electric Cable Polyamide Hot Melt Adhesive

Polyamide Hot-melt Adhesive/Hemming Adhesive (DY-P401)

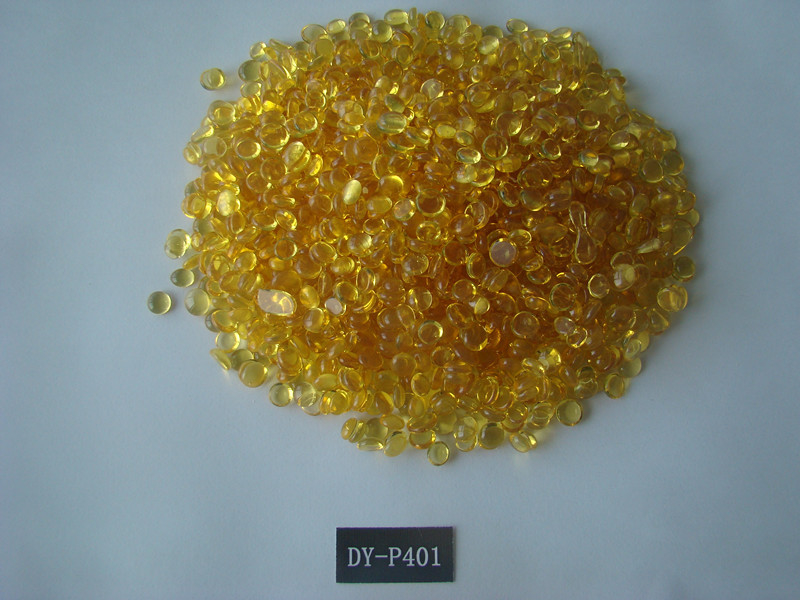

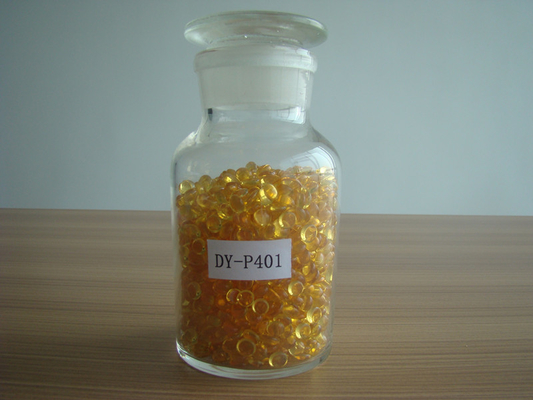

1.Appearance:

      Yellowish round grain with schistose shape



2.Property:

DY-P401 is a general type of polyamide hot-melt adhesive, which is made from dimer acid and polyamine through condensation reaction at high temperature.

It can dissolve in general organic solvents, the hot-melting viscosity of the resin is greatly related to the temperature that it gets.

The polyamide hot-melt adhesive possesses the following advantages, such as lower viscosity, good fluidity, good flexibility, high adhesive strength, good media corrosion resistance, good solubility and fluxing property at low temperature, higher heat stability etc.



3.Application

This type of resin is applied in heat-shrinkable sleeve for electric cable, sealing material for electrical connection, cementing or fixing materials for electronic component, bonding material for package, textile, leather, wood, plastic, metal and ceramics etc.



4.Technologic Index

Acid Value,(mg KOH/g ≤) 5
Amine Value,(mg KOH/g≤) 3
Viscosity,(mpa.s/200ºC) 1000-2500
Softening Point,(ºC) 110±5
Color,(Fe-Co ≤) 8
Tensile Strength, (≥ MPa) 5
Water absorption, (≤ %) 0.4
Shear Strength, (≥ MPa, AL/AL) 6
Stretch Rate, (≥ %) 100

Peeling strength,

(≥ N/25mm,PE/PE,60±2ºC)

100
Operating Temperature( ºC ) 140-160

5.Packaging & Storage

Double packing: craft paper-plastic composite bag lined with PE film.

Net weight: 25Kgs per bag.

Storage: kept in cool, airy and dry place, keep the package sealed before using up.
