Product Details:
|
| Product Name: | Vinyl Chloride Resin | Application: | Common Metal Overprinting Varnish, Corrosion Resistant Coating For Vessel And Marine, Lacquer For Machinery Shell, Industrial Maintenance Paint, Plastic Lacquer, Can Coating, Leather Coating, Interlamination Adhesive, Magnetic Tape Adhesive, Gravure Printi |
|---|---|---|---|
| Appearance: | White Or Yellowish Powder | Vinyl Alcohol Content: | 6.0±0.5% |
| Viscosity: | 55~60ml/g | CAS No.: | 25086-48-0 |
| HS: | 3904300000 | Net Weight: | 25Kg/bag |
| High Light: | 9005 09 8,vinyl acetate vinyl chloride copolymer |
||

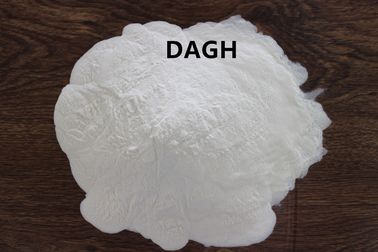

CAS No. 25086-48-0 Vinyl Chloride Resin DAGH Used In PU Wood Paint The Countertype Of Kaneka T5HX
Specifications:
| No. | Item | Index | Test Method & Criteria | |
| 1 | Appearance | White powder | By visual | |
| 2 | Whiteness | ≥80 | GB2913-82 | |
| 3 |
Composition (%, by Wt) |
Vinyl Acetate | 4.0±1.0 | ISO1159-1978 |
| Vinyl Alcohol | 6.0±0.5 | |||
| 4 |
K Value |
46-52 | GB/T3401-1999 | |
| 5 |
Hydroxyl Value (Mg KOH/g) |
70-77 | ISO2554-1974 | |
| 6 |
Reactive Functional Group (Hydroxyl %) |
1.8-2.3 | ||
| 7 |
Viscosity (Ml/g) |
55-60 | GB/T3401-1999 | |
| 8 |
Grain Size (through 60 mesh) |
100 | GB/T6003.1 | |
| 9 | Average Molecular Weight | 27000-30000 | ||
| 10 |
Glass Transition Temp(ºC) |
About 79 | GB11998-89 | |
| 11 |
Stacking Density (g/ml) |
≥0.6 | GB20022-2005 | |
| 12 |
Volatilization (%) |
≤1 | GB/T2914-1999 | |
| 13 |
Impurity Particle No. (grains/100g) |
≤20 | GB9348-88 | |
| 14 |
Solubility 25%(MEK : Toluene=1:1)solution |
Colorless, Transparent, No insoluble matter | By visual | |
| 15 | Countertype | VAGH | DOW | |
| T5HX OR T555 | Kaneka | |||
Property:
The excellent carrier of pigment used in the inks and coatings, excellent adhesion, used with other film-forming materials to improve the properties of coating, and strengthen adhesion, flexibility, toughness, hardness, chemical resistance etc.
DAGH resin can implement cross linking reaction with thermosetting resins (e.g. Isocyanate), the formed film has the following excellences, such as bright, hard and tough, wear resistant, scratch resistant, water resistant and chemical resistant etc.
Applications:
Applied in many fields, the details are as below:
1. gravure printing ink for recombination,
2. interlamination adhesive, magnetic tape adhesive,
3. marine overprinting varnish, common metal overprinting varnish, corrosion resistant coating for vessel and marine, lacquer for machinery shell, industrial maintenance paint, plastic lacquer, can coating, leather coating, high grade PU wood paint, metal paint etc.
Compatibility:
DAGH terpolymer is miscible with other resins during the course of use, such as other types of vinyl chloride vinyl acetate copolymer, PVC resin, perchloro-ethylene resin, ketone resins, chloroprene rubber, NBR, polyacrylate, epoxy resin, polyester and petroleum resin etc.
Solubility:
For DAGH resin, ketone solvents are specially suited, such as acetone, MEK, nadone and isophorone. Compared with ketone solvents, ester solvents have lower solubility for DAGH type of resin, such as methyl acetate, ethyl acetate and butyl acetate etc. Therefore, we need to heat the solution or add ketone solvents into the solution while DAGH type of resin is dissolved in ester solvents.
Chlorohydrocarbons, Nitro compound and alicyclic solvents, such as dichloroethane and diethylene oxide, also can dissolve DAGH type of terpolymer resin, but these kinds of solvent are toxic, they are only used in special situation.
For DAGH resin, lower molecular weight is helpful for increasing the solubility of resin and solid content of solution.
Packaging and Storage:
DAGH resin is usually packaged into the craft paper-plastic composite bag lined with plastic film according to 25Kgs per bag.
DAGH resin should be stored in dry place away from sunlight.
Others:
Should DAGH resin have been kept over the shelf time, it shouldn’t mean the resin is invalid, but the user has to test the relevant properties of DAGH resin and its finished product before using it in bulk.
Any queries on technology or quality assurance can be inquired to our company.
Competitive Advantage:
More advantageous price among lots of competitors.
Rapid and efficient service based on quality and technic.
Shorter delivery time according to requirements from clients.
